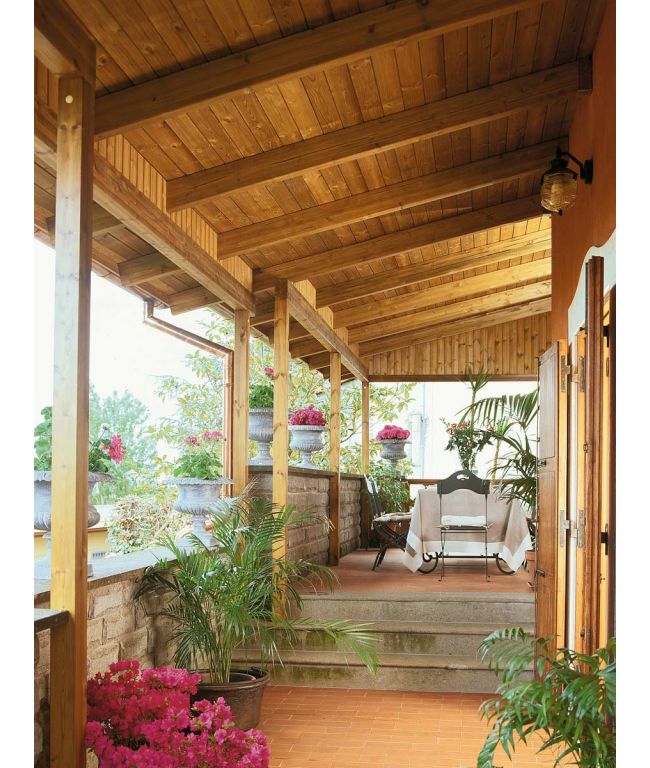

Attached pergola Idéale roofing in wood

Attached pergola whose structure is in lamellar Nordic pine and can be painted in dark walnut, teak or in colours from the Unopiù Colour range (p. 234). The pergola is available without roofing or with the following roofing: - polycarbonate (minimum pitch 5%); - wood (adding terracotta tiles over waterproof roofing felt); - wood and bitumen roof shingles (minimum pitch 18%); - aluminium louvers (pitch varies from 10% to 15%) with gutters and downpipes. The aluminium louvers, powder coated in pale ivory, can be regulated with
a manual adjustment rod (from 0° to approx 130°). The independent adjustment of each module allows regulation of air and light and offers optimum protection from the rain. Roof should be left open in snowy conditions (louvers at 90°). Measurements given refer to the maximum area occupied by the structure when it is hypothetically erected on the flat. The front posts are 250 cm high and can be cut on site as required. You can create a truly versatile made to measure modular system which is adaptable to all types of areas and can be enhanced with Wood Garden accessories. • The Idéale pergola can be supplied without roofing, or with a series of waterproof roofing: • wood, to be completed with only roofing felt or with roofing felt and terracotta tiles. The waterproof roofing felt is clad with slate shingles 4mm thick, available in rolls of 6m² or 10 m² in brick red or green. The increased weight of terracotta tile roofing requires an increase in the number of load bearing posts with spans no greater than 250-300cm. Should you choose to enclose the structure with trellis panels, the distance between the load bearing posts should be compatible with the size of these panels. FIXING The pergola can be fixed:to the ground: anchored by posts to the ground using special brackets art. SINT which must be set in concrete.to the pavement: the pergola is fixed using “L” brackets (for posts 90 x 90, 90 x 150), raised “ribbed” brackets (for 90 x 90 posts) or double raised brackets (for 90 x 90 and 90 x 150 posts), bolts and plugs. to a wall: using plugs, to be chosen according to the type of wall.
